PINNED ZXD2400 Old + New 0-60V 0-50A Power Supply & Charger

[elryko1992]

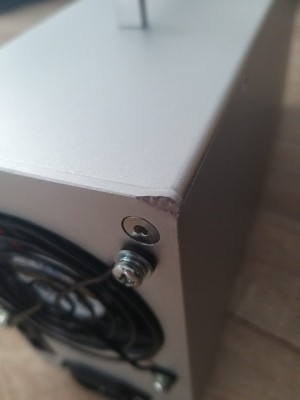

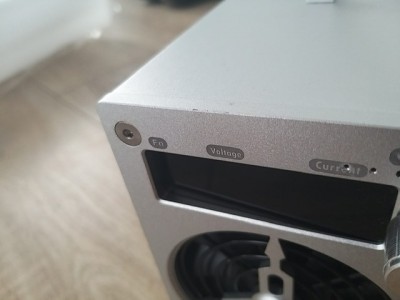

I recieved my PSU but i need to see if works. The pigtails is good for my PL8, Have signs and the display is not good is push in case. Photos:

[daveonwheels]

it's obviously damaged. display might be kaput might not. looks like it got dropped.

[shirley_hkg]

It has been wrapped with loads of foam.

[elryko1992]

Hi! Shirely, yes was have foam, but with foam have this signs… anyway is work, but i need to reopen the case of psu to see if i can put the screen display back. From face i need to removs the screw? Or back? How to dissambley the case?

[Burgerman]

Nothing holds that end. I used a dab of contact adhesive.

[shirley_hkg]

From face i need to removs the screw? Or back? How to dissambley the case?

Right , front plate is held by 4 screws.
Beware of thin wires attached. Just open up a little bit , so you can dip a little viscous glue to hold the free end.
Hot glue , silicone , etc.

[elryko1992]

Ok thanks! I will do that.

[steves1977uk]

Got my new PSU today, thanks Shirley! It arrived in pristine condition, also had a XT60 plug in the front.

Steve

[Burgerman]

And a bucket full of pl8 balance connectors I see?

[shirley_hkg]

Got my new PSU today, thanks Shirley! It arrived in pristine condition,

Steve

Felt a load off my mind.

[Dan]

Mine came yesterday morning, no problems. Looks great, turned on and is working perfect.

Its good to avoid customs. Maybe you can stick 4KG of coke in there next time.

[Burgerman]

I ill send you these if you wnt?

https://www.iceland.co.uk/p/diet-coke-3 ... ET&start=1

[biscuit]

Yay, my ZXD arrived and I've now got a noise like there's an aeroplane revving up in my bedroom - fortunately this cacophony will be in the garage keeping my wheelchair there on a float charge, when I have figured out how to get the machine to do that. Does anyone have the instruction translation? The link to Steve's translation gives a 404 error and I have never downloaded it in the meantime.

[biscuit]

My auto translator seems to be doing ok, actually. But it's lots to take in. My brain is overheating.

[Burgerman]

Its simple once you figure out that one button/knob push, wait, release, turn, etc interface!

Esp for lng term float. Just set as power supply and set to 13.3 to 13.4V per 12v batt. And 1A max.

[Arima]

Another ZXD arrived in the US well packed and appears in excellent condition!

[shirley_hkg]

And 10 pigtails too ?

[Arima]

YES...10 pigtails! Also in excellent condition. Thank You.

[steves1977uk]

Yay, my ZXD arrived and I've now got a noise like there's an aeroplane revving up in my bedroom - fortunately this cacophony will be in the garage keeping my wheelchair there on a float charge, when I have figured out how to get the machine to do that. Does anyone have the instruction translation? The link to Steve's translation gives a 404 error and I have never downloaded it in the meantime.

Yeah, my new PSU is also louder than the other two ZXD's I have. Funnily enough if you apply pressure to the centre of the fan, it quietens down until you let go. I'm thinking rubber anti-vibration rings are needed between case and fans.

Steve

[LROBBINS]

A FUNNY THING HAPPENED ON THE WAY TO THE INSTRUCTIONS

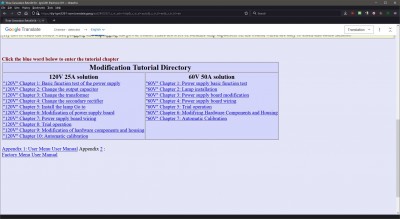

One of my ZXD was misbehaving, outputting ca. 1/2 the V and A it was set for, so I wanted to look at the translations which I'd stored as bookmarks in Firefox. Last week they opened with some strangeness, such as the link to Appendix 2 going to Appendix 3 (fixed by changing the URL), but they were usable. This week they opened in European-character encoded Chinese. Even though Google translate said that they were translated to English, they were identical to directly opening the Chinese URLs.

Eventually, I copied the URLs from Firefox and pasted them into Internet Explorer. There they Google translated quite nicely and all links worked! So, I was able to re-run the auto calibration which showed no errors and the power supply started working properly. I then re-did the factory menu settings to my liking so am back in business.

To avoid going through these hoops again I saved the pages of most interest as full html on this PC. Perhaps important only for this old Fujitsu convertible that is running normal Win10 instead of LTSC --- hence, Internet Explore nags with multiple screens saying IE will be decommissioned in June, urging me to change to Edge, then trying to automatically open Edge and all other web-based MS garbage. In any case, if you have trouble opening the instructions from one browser, try another.

[Burgerman]

Whats the original link?

[Burgerman]

https://translate.googleusercontent.com ... O_2h0w8c8w

Found it. Just shows a 404 - not found?

[woodygb]

Any use?
https://drive.google.com/file/d/1SdeG_w ... 3f1O1/view

and

https://zhuanlan.zhihu.com/p/350595518

[Burgerman]

Not really! Esp the 2nd one!

[LROBBINS]

Here's the URL of the main page that doesn't translate in Firefox but is translated in IE:

https://translate.google.com/translate?act=url&depth=1&hl=en&ie=UTF8&prev=_t&rurl=translate.google.com&sl=auto&sp=nmt4&tl=en&u=http://diy.lgm3361.com/zxd2400/3/&xid=25657,15700023,15700124,15700149,15700168,15700186,15700189,15700190,15700201,15700205

That page contains links to the rest, but if you bookmark the URLs you can go directly to the ones you want. For example, Appendix 2 - Factory Menu is
https://diy-lgm3361-com.translate.goog/zxd2400/3/annex2/?_x_tr_sl=auto&_x_tr_tl=en&_x_tr_hl=en&_x_tr_sch=http

[biscuit]

Any use?
https://drive.google.com/file/d/1SdeG_w ... 3f1O1/view

and

https://zhuanlan.zhihu.com/p/350595518

Chrome on my phone translated them fine (I guess -but I'm not convinced about the whore being correct on page 1 )
Though they might just as well be in Chinese.

[steves1977uk]

Here's the URL of the main page that doesn't translate in Firefox but is translated in IE:

https://translate.google.com/translate?act=url&depth=1&hl=en&ie=UTF8&prev=_t&rurl=translate.google.com&sl=auto&sp=nmt4&tl=en&u=http://diy.lgm3361.com/zxd2400/3/&xid=25657,15700023,15700124,15700149,15700168,15700186,15700189,15700190,15700201,15700205

That page contains links to the rest, but if you bookmark the URLs you can go directly to the ones you want. For example, Appendix 2 - Factory Menu is
https://diy-lgm3361-com.translate.goog/zxd2400/3/annex2/?_x_tr_sl=auto&_x_tr_tl=en&_x_tr_hl=en&_x_tr_sch=http

The first link translates ok in Waterfox G4.0.7 which is based on the latest Firefox ESR 91...

Steve

[shirley_hkg]

Now I just bought a (second) ZXD2400.
I will have 2 ZXD2400 and a good investment for the future.
My plans are to embrace lithium in the future, but I don't have a budget right now.
I advance little by little.

Thanks.


P.S. In the forum I learn many useful things.

[fishinjunky]

Would this PSU be the best option for keeping a set of group 24 mk gel 70ah batteries alive outside of the chair?
I don't really want to use my icharger for this.

[Burgerman]

Its the best option for charging one battery. 2 in series. 2 in parallel. the battery in the chair set to 12A max, and any other scenario you could think of.

For gel for e.g it can be set to 14.1v with a termination of 0.3A and a float of 13.6 in cyclic use, 13.45v in storage use, etc. but its main use is as a power supply for your various needs like powering a hobby charger. Its a 3000 watt capable, 2 or 3 stage charger or powr supply. 0 to 60V and 0 to 50A if powered from a 230v supply. But its loud and over the top power wise as a maintainer only.

To keep the alive outside the chair you need only charge them monthly. Or hold them at 3.4 to 13.5v indefinitely. That only needs much less than an amp.
