PGDT Serial interface cable ...USB Alternative :D

[woodygb]

I'd start with enquiries about availability in your countries...
Port.de seem to be a distributor of IME ACTIA Products.
http://www.port.de/pages/contact/index.php?lang=en

And this is PROBABLY compatible ...same maker ..lists level x drivers that I've seen referenced by the Curtis prog.
http://www.port.de/pages/products/can/c ... hp?lang=en

[gologen]

And this is PROBABLY compatible ...same maker ..lists level x drivers that I've seen referenced by the Curtis prog.
http://www.port.de/pages/products/can/c ... hp?lang=en

Looks like it should work. It uses same LevelX library. New drivers support all Windows


Only. It can be connected to RS232 and USB and it has two drivers for RS232 and USB. When connected to RS232 it will be serial port and i don't see problem


But when connected to USB it will appears as USB

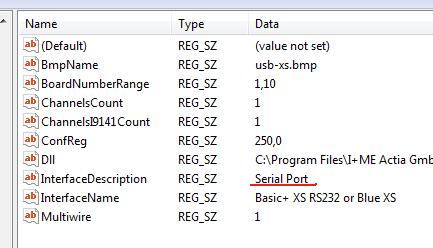

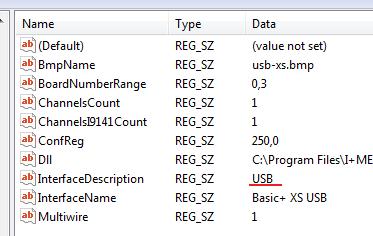

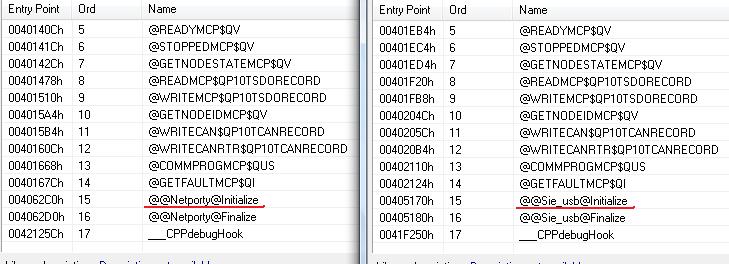

But in the program USB assigned to SIA devices. On the picture export functions for two dll.
Left - MCP_lib.dll Right - MCP_lib_usb.dll
(picture in next post)

[gologen]


May be a problem. May be not. I don't know

[woodygb]

Just for info....

This page lists the "language" Netporty talks...is in the US .. and has an online order .

http://actiaus.com/Product/VCI_CAN.htm

[gologen]

And any interface made by I-ME ACTIA listed in the drivers folder.

He however recommends the NETPORTY2

Any interface I-meA that supports LevelX library should work

Or get a serial adapter for your laptop.
http://www.ebay.com/itm/RS232-ExpressCa ... 53eca243ad

Or this adapter or any USB-RS232 converter. Everything will work.

My USB-CAN device has inside USB-RS232 chip

[Seajays]

So what do I need a Windows Xp to use this. Need to know before I purchase a used XP laptop. All I have is Mac+ Windows 7.

[gologen]

Seajays. What the CAN interface do you have?

[woodygb]

The "need" for an old XP based machine is based purely on reports of others having problems wth Windows 7 & the 1314 prog.... plus a puter with a built in RS232 should help in eliminating yet another possible problem with a installing and configuring yet another driver lead interface .

I'm only suggesting that ,in the interest of avoiding problems and conflicts, an older cheap XP based machine might be the way to go.

[Burgerman]

For what its worth i never found anything that didnt work on windows 7. Even if you have to use compatibility mode for xp service pack 3.

And even if you do, you dont need a new machine, just dual boot xp as well on your existing one.

[gologen]

For what its worth i never found anything that didnt work on windows 7. Even if you have to use compatibility mode for xp service pack 3.

And even if you do, you dont need a new machine, just dual boot xp as well on your existing one.

I fully agree.
We are looking for cheap alternative to original device. And purchase of old laptop it's extra money.

[Seajays]

gologen, I have this USB - Canbus on order, prior to you posting you results. I will have to see how to put XP on my Windows 7 Laptop.

http://www.ebay.com/itm/320877945360?ss ... 009wt_1398

[LROBBINS]

The last computer I have with a RS232 (and parallel) port is Windows 97SE. I keep it because my Dynamic Wizard has an RS232 programming cable and Centronics dongle. I don't know if there were many (or any?) computers with these ports by the time XP came along. If considering PCMCIA or Cardbus, I think that RS232 boards are available for both.
Ciao,
Lenny

[woodygb]

The CHEAP Dell Optiplex GX260 (Ebay ).. the computer I currently use ...circa 2000 -2002 ... has Serial (9-pin) ,Parallel (25-hole )and USB.

[gologen]

Seajays. When you receive your adapter ask seller about dll file and manual for dll file. At least we will know can you use my dll or not.

[Seajays]

I asked the seller and this is what he sent. All Chinese. Looks like I might be screwed.
http://www.divshare.com/i/16979566-a64

[2senile]

Not necessarily, the download does contain the correct driver. I got bored, couldn't sleep so had a little browse. Manufacturer of the USB to serial bridge chip seems to be Winchipbond. It's CH341. Drivers from their site ... http://www.winchiphead.com/download/ ... but it is all in Chinese

I'd just install from the one you got from your seller as getting the driver from that site I linked to risks downloading the wrong one ... unless you've managed to learn Chinese in the last few hours.

[woodygb]

Correct ..http://www.winchiphead.com/download/CH341/CH341SER.ZIP

[gologen]

Seller sent only USB to serial driver and debugging program. He didn't give CAN driver. So debugging program include CAN driver and can be used only with this device (and vice versa). So this device can not be used in other applications. We don't know API of this device and don't have CAN dll (not USB to serial).
When i asked seller about soft he will give - he say "some soft"
When i asked about CAN dll and info - i didn't get answer at all.

Maybe somewhere there is this dll, but where to look it.

Seajays. You can for now connect this device to powerchair and see CAN traffic in the system (with debugging program). Speed 250kbps.
I don't see how else to help you. Sorry.

[woodygb]

If it's any help the main chip appears to be ..STM32F103

[gologen]

It's just CPU, but how it programmed and how communicate to it ???

[gologen]

This is from LevelX manual
Functions


with alot of parameters


I have input functions and parameters for my device. I got dll file and manual from seller. I wrote "translator" from LevelX to QM_USB.

If i don't know input functions how to write

[gologen]

Who interested in manual to QM_USB.dll (my device).
I got it in chinese and translated in Google. A little difficult to read.
Some mistakes in the functions were corrected.

I thought, Seajays will get similar manual and dll for his device

[woodygb]

Gologen/Seajay ... Any idea of the manufacturer of the CAN-BUS V3.00?

[woodygb]

Bueno Tech Pty Limited

http://fibermodem.en.china.cn/selling-l ... 211,1.html ?

[Seajays]

Arrived Today. Now what to do.
CAN-BUS V3.00

2010-10-26USB to CAN BUS Converter
General Information: CANUSB is a very small dongle that plugs into any PC USB Port and gives an instant CAN connectivity. This means it can be treated by software as a standard COM Port (serial RS232 port) which eliminates the need for any extra drivers or by installing a direct driver DLL for faster communications and higher CAN bus loads. Sending and receiving can be done in standard ASCII format. Specifications: Can handle up to 1Mbit/s CAN bitrate Industrial Temp range -30C to +85C USB 2.0 Full Speed, Compliant to CAN 2.0A (11bit ID's) and CAN 2.0B (29bit ID's) 32 CAN frames deep FIFO buffer for incomming frames in CANUSB firmware Time Stamp option in mS for incomming frames CANbus connection according to CiA DS102-1 standard...

[woodygb]

Install the downloaded USB Chip driver from the link they gave you ...win 7 64 or 32

[woodygb]

Once you've done that .. and the COM port for the CANUSB is recognised ..you can connect up CAN-H and CAN-L.

The monitoring software should allow you to see any data flow ...and Gologen say's that's about as far as you'll get.

You might as well try and see.

[gologen]

Arrived Today. Now what to do.

Try what Woody says.
Connect CAN-H and CAN-L. Don't use very long wires (i have ~ 1 meter). Better twist their. Leave jumper 120 Om on place. Don't connect ground.


Try monitoring software. Speed 250 kbps. You can try 1314 PCPS, but...

[Seajays]

Ok, Installed the driver Woody sent me it say's ... USB-Serial CH 340 ( Com 22 )

Try monitoring software. Speed 250 kbps. You can try 1314 PCPS, but

What dose the " but " mean

[2senile]

... but means you may not be able to "send" to the wheelchair module.

Go to where you extracted the files & open the folder called "USB to CAN software and driver v3.00", then open the folder called "CAN programme", double click the executable called "USBtoCAN（v2.00-English）.exe".

It will open an interface. You can set the Baud rate, com port etc. You may even be able to click on "can set".
